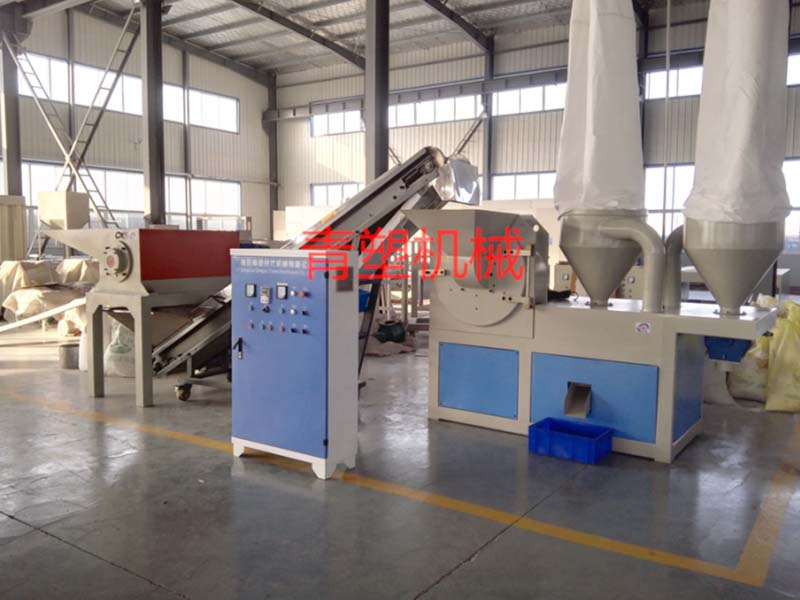

The whole line is made of crusher, transport device, high intensity magnetic automatic iron remover, automatic sand remover and mill. It is specially designed for PVC construction template and other PVC foam board recycled, the advantage is that the recycled board do not need clear, do not need cut, can be processed with nails/sands/other metal, and can put the whole board directly into the crusher. Increase efficiency and save workers and reduce labor intensity, can make sure the finished powder clear and evenly.
1.crusher device
Crusher inlet width:1100mm
Power of crusher: 15kw
Rotate speed of rotor: 100r/min
The fixed knife amount:2pcs
2. transport and metal separate device
The transport belt motor power: 0.55Kw
3. mill device
Mill room inner diameter: 800mm
Mill motor power:30kw
Rotate speed of rotor: 2900r/min
Output of mill:400-600kg/h
4. electric control cabinet
Match specially electrical control system
